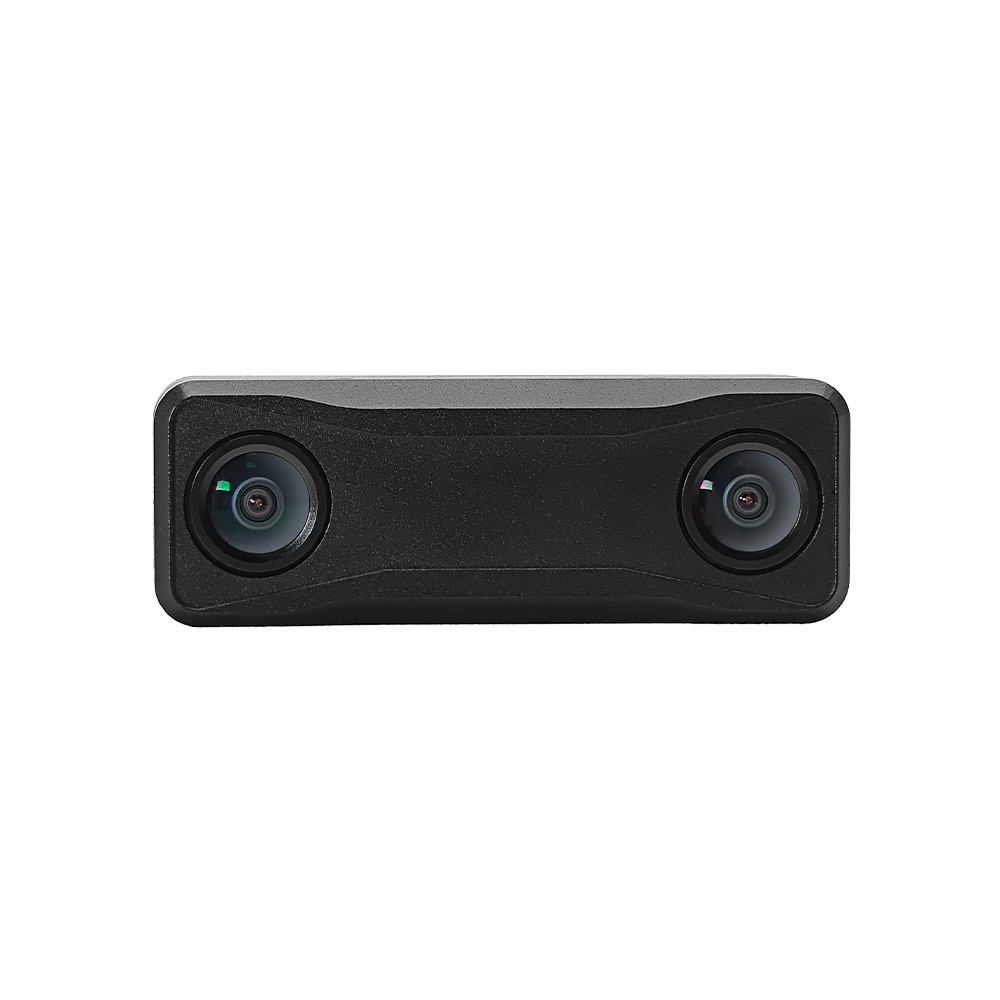

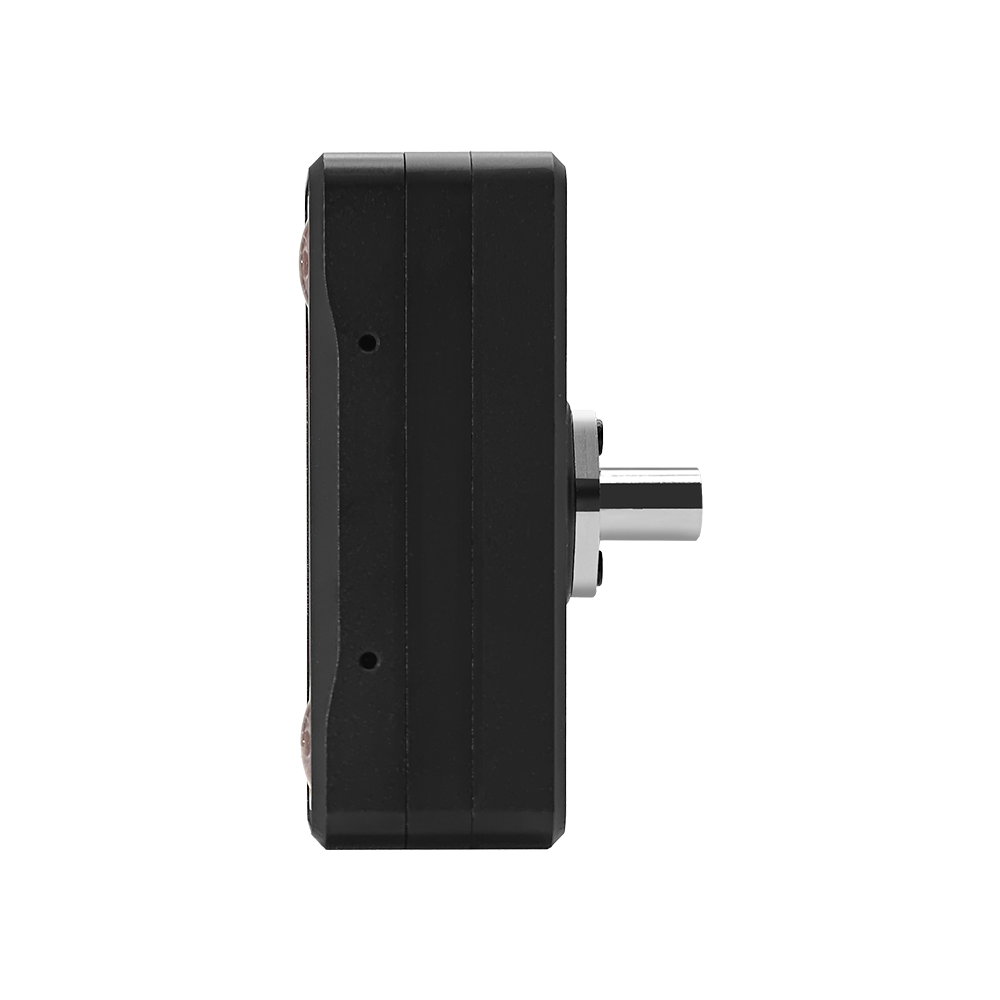

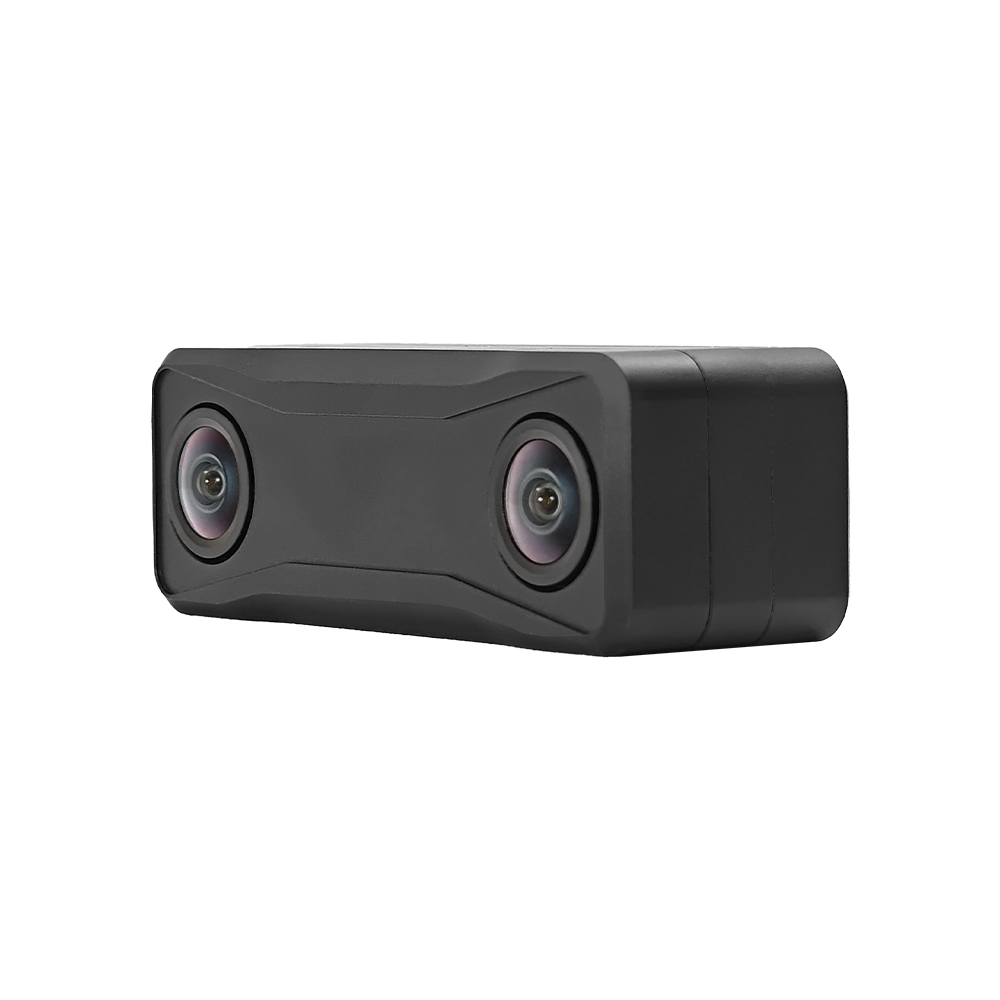

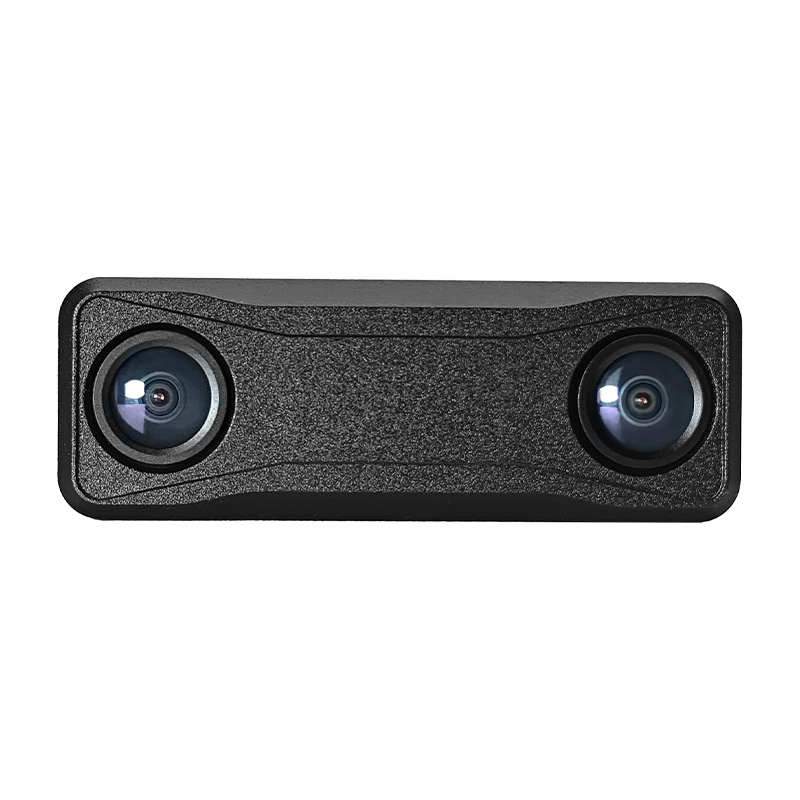

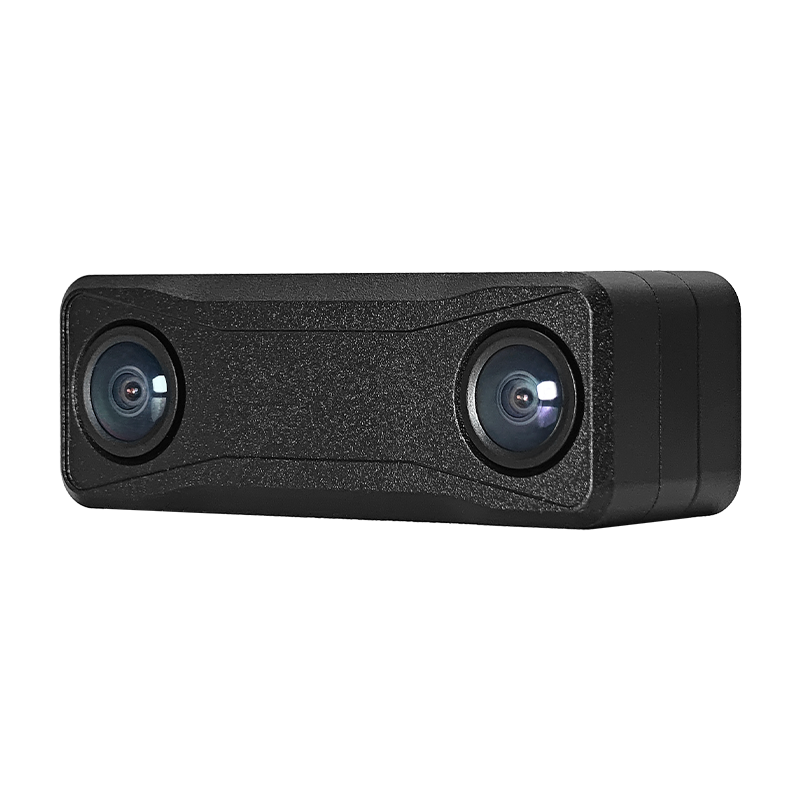

Machine Vision Stereo Camera
Resolution:1280(H)x800(V)
Frame Rate: 30/60fps
Lens: 120°x76°

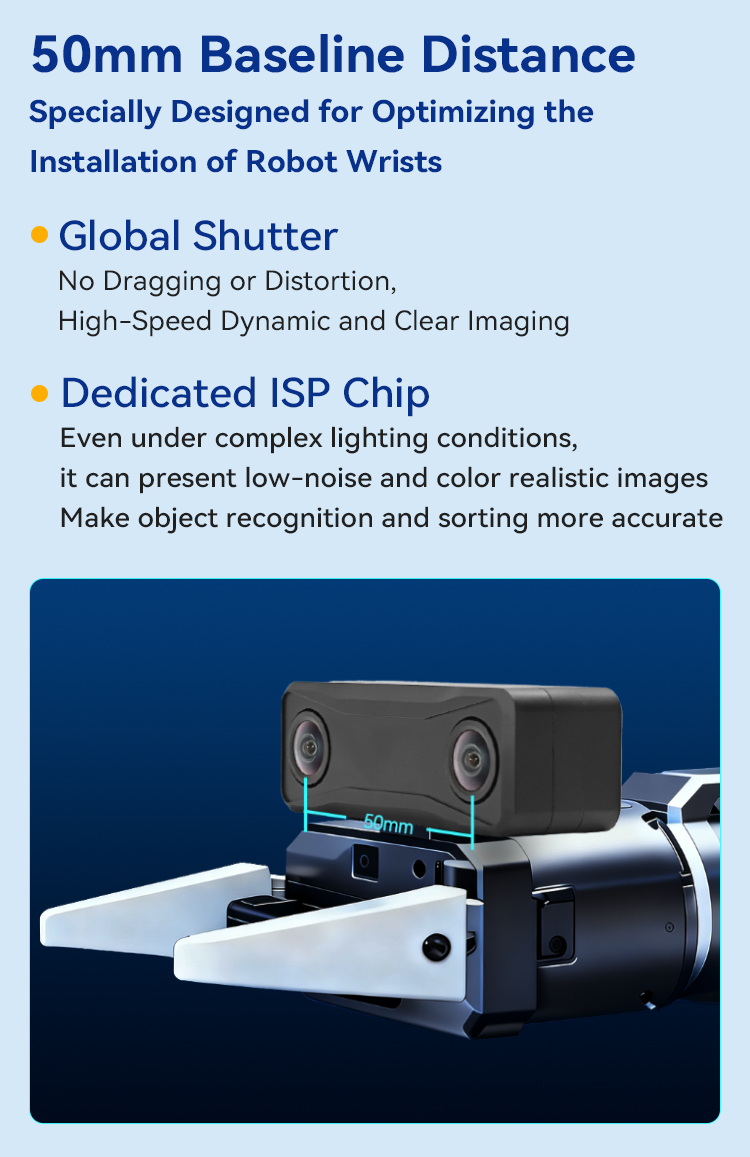

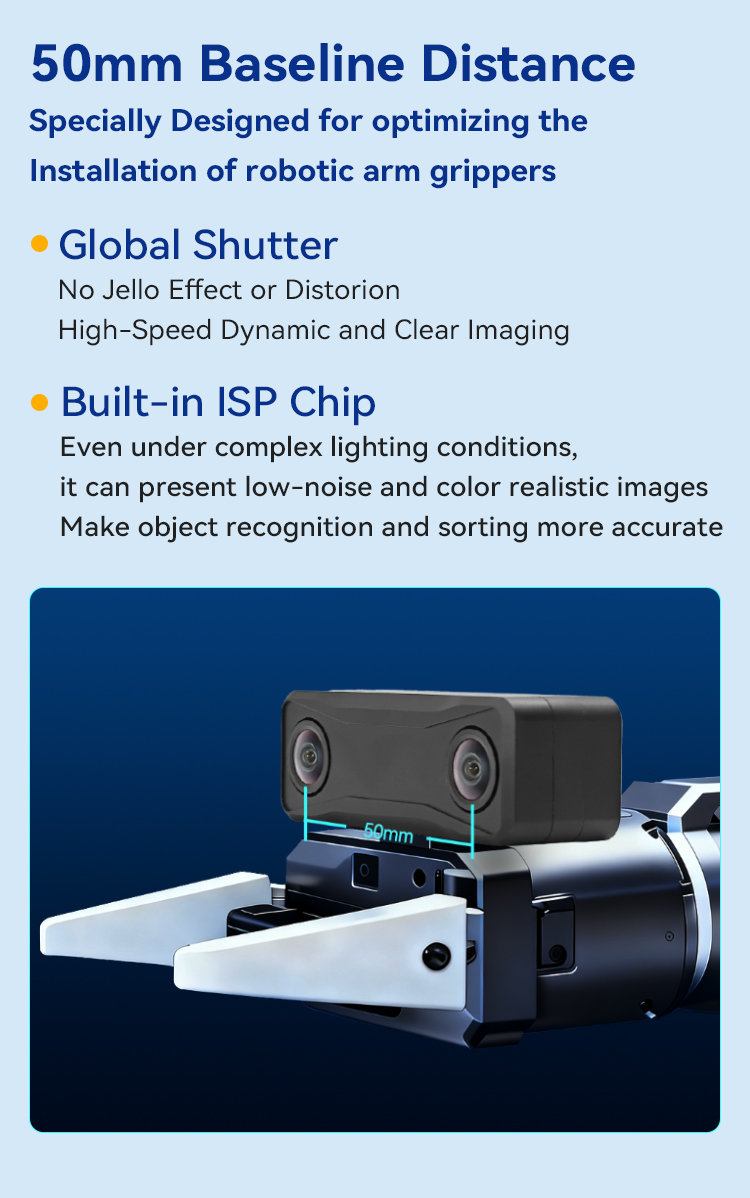

Baseline：50 mm

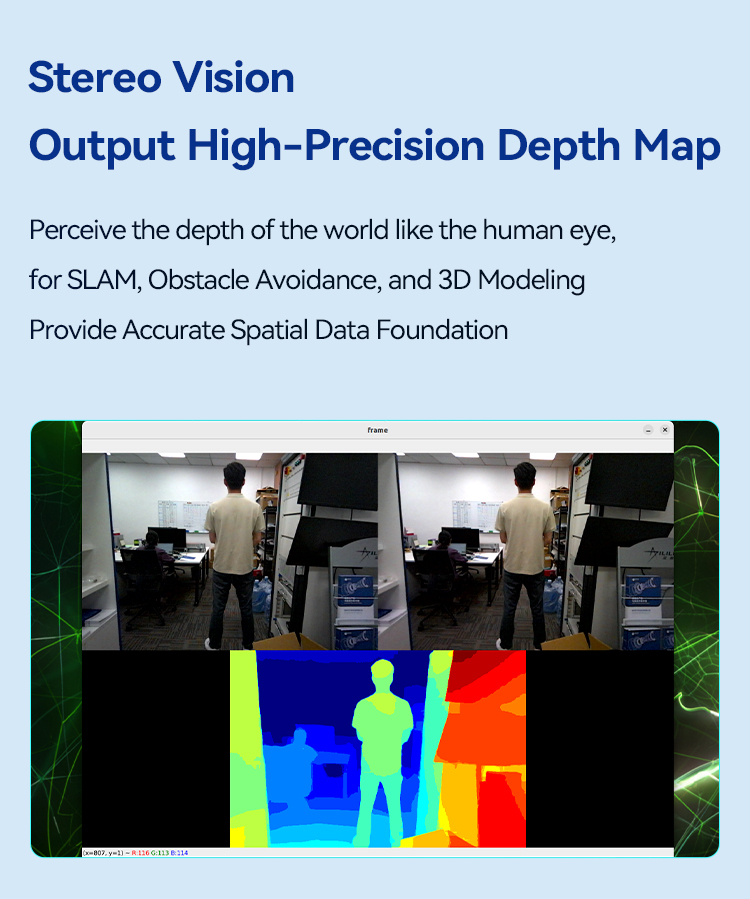

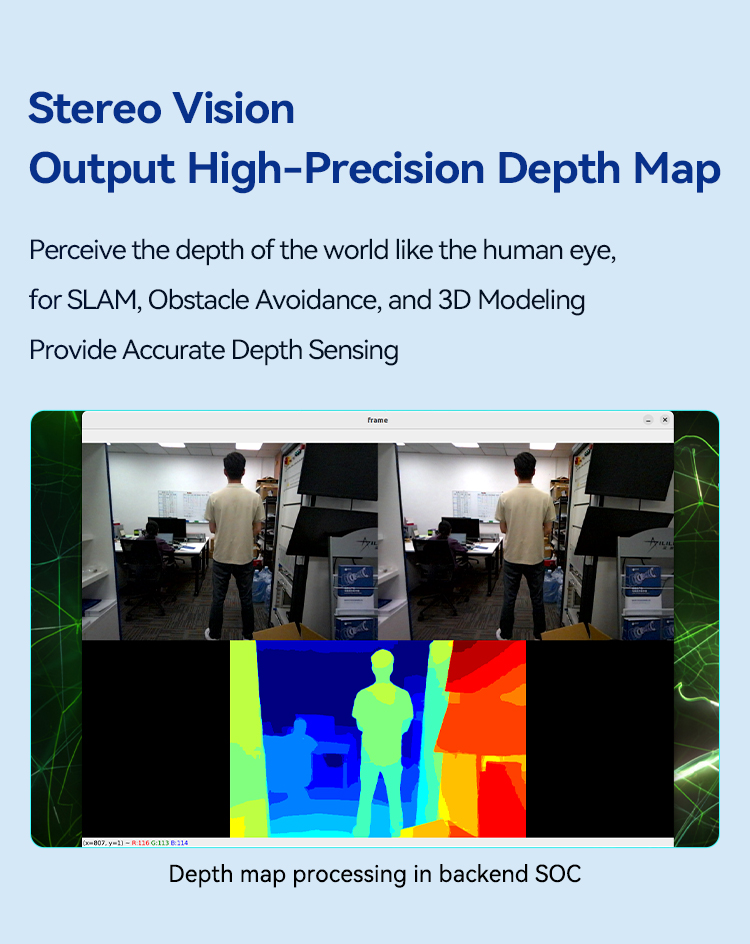

Depth Measurement Range：0.1m-3.5m(Ideal Value)
Optical size：1/4.3 inch CMOS
Pixel size：2.8μm

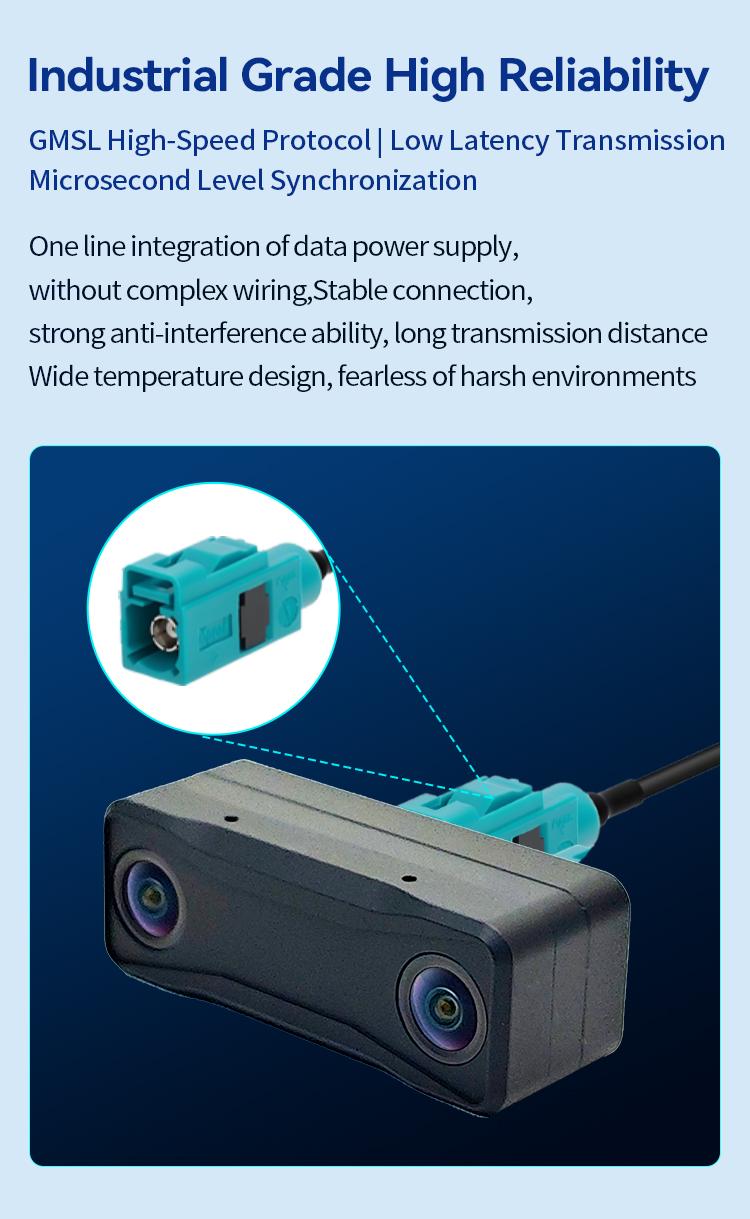

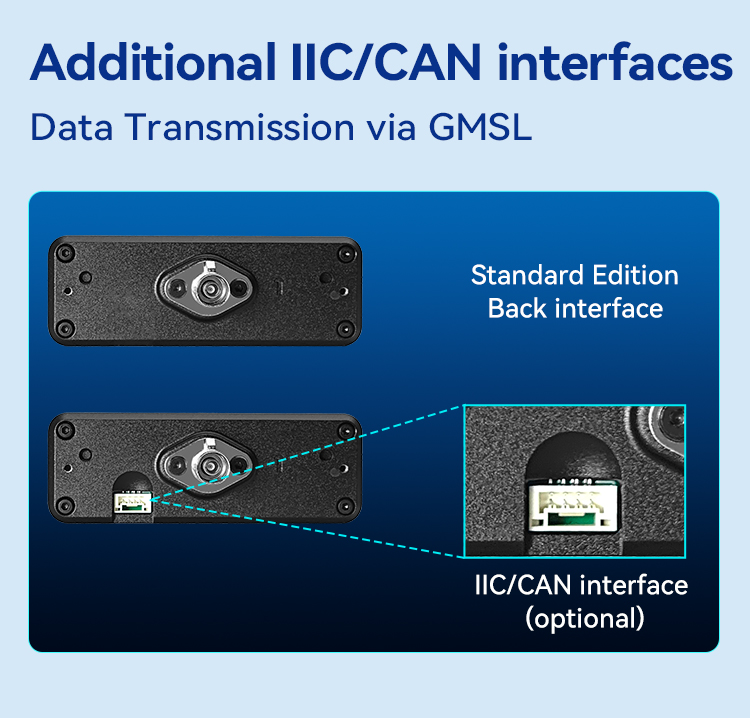

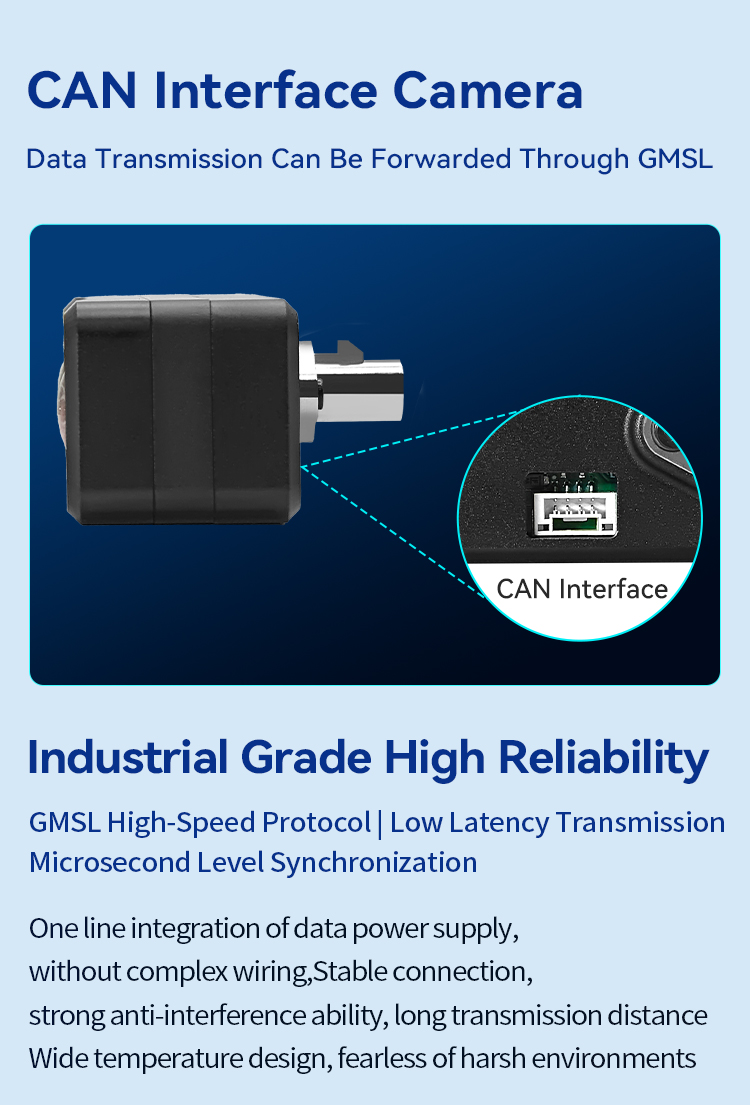

Output Interface: GMSL 2
Dynamic Range: 120dB
Shutter Mode: Global Shutter
Exposure Control: Internal/External Trigger

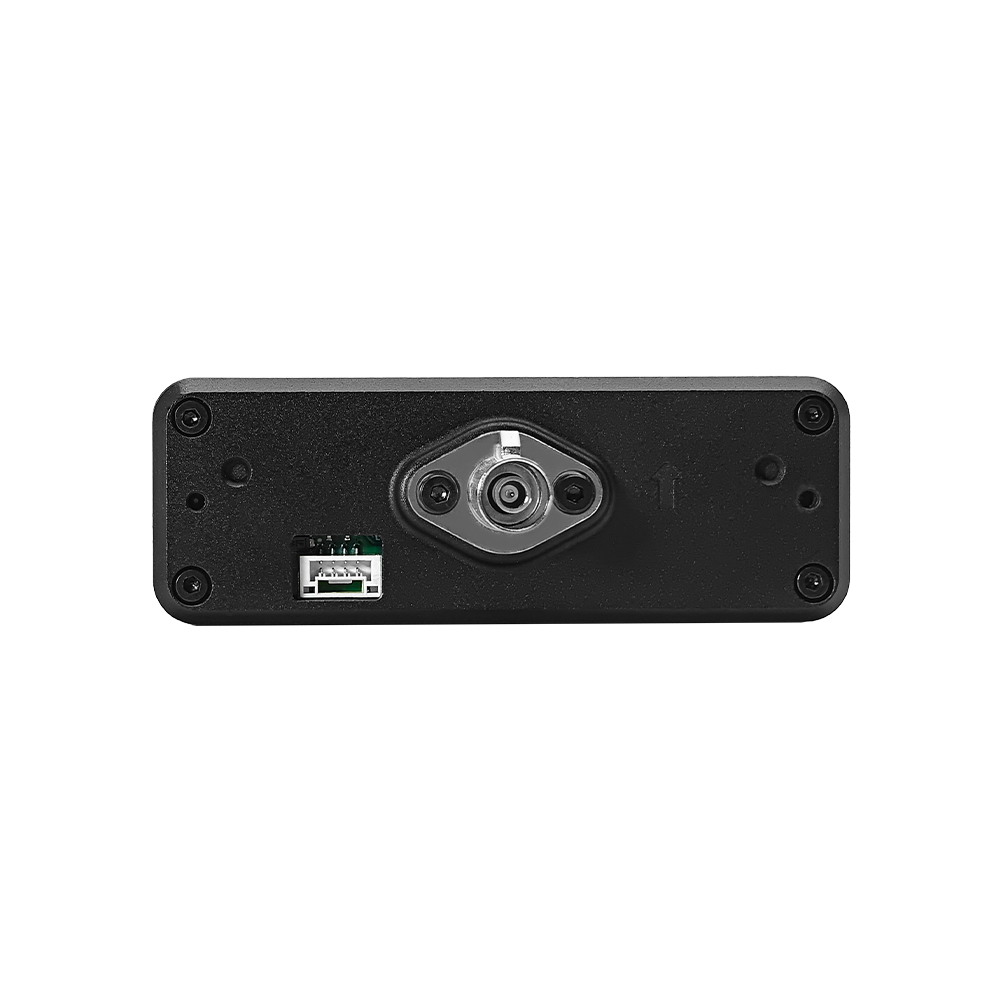

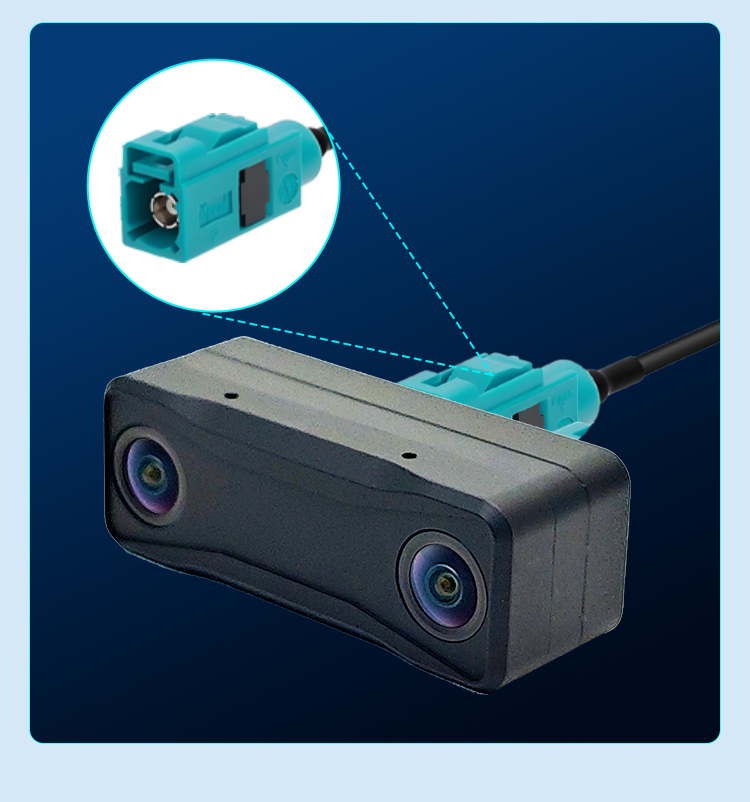

Interface Type: FAKRA Z
Operating Temperature: -20°C ~ +65°C
| Title | Release Date | Published By | Download |
|---|---|---|---|
|
Product Specifications|AVS_Machine vision_Stereo_Camera_Product_Sheet
2026-07-13
艾利光科技
|
2026-07-13 | 艾利光科技 |
|
