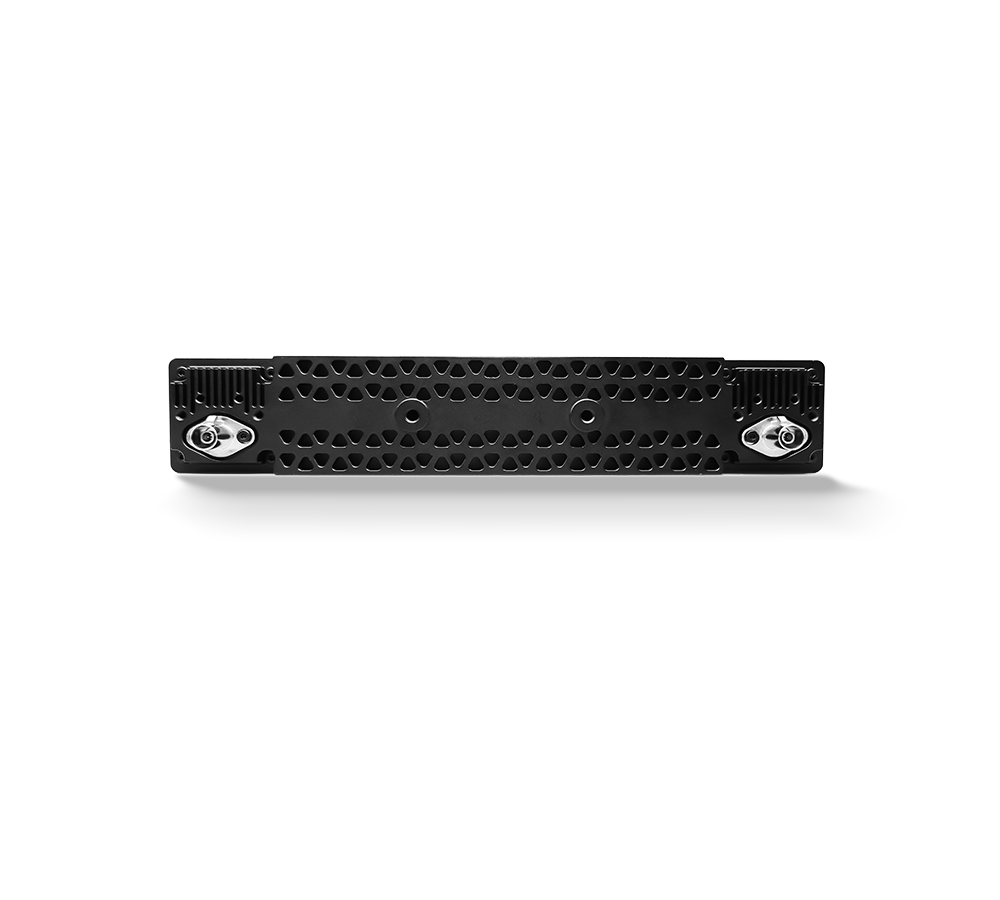

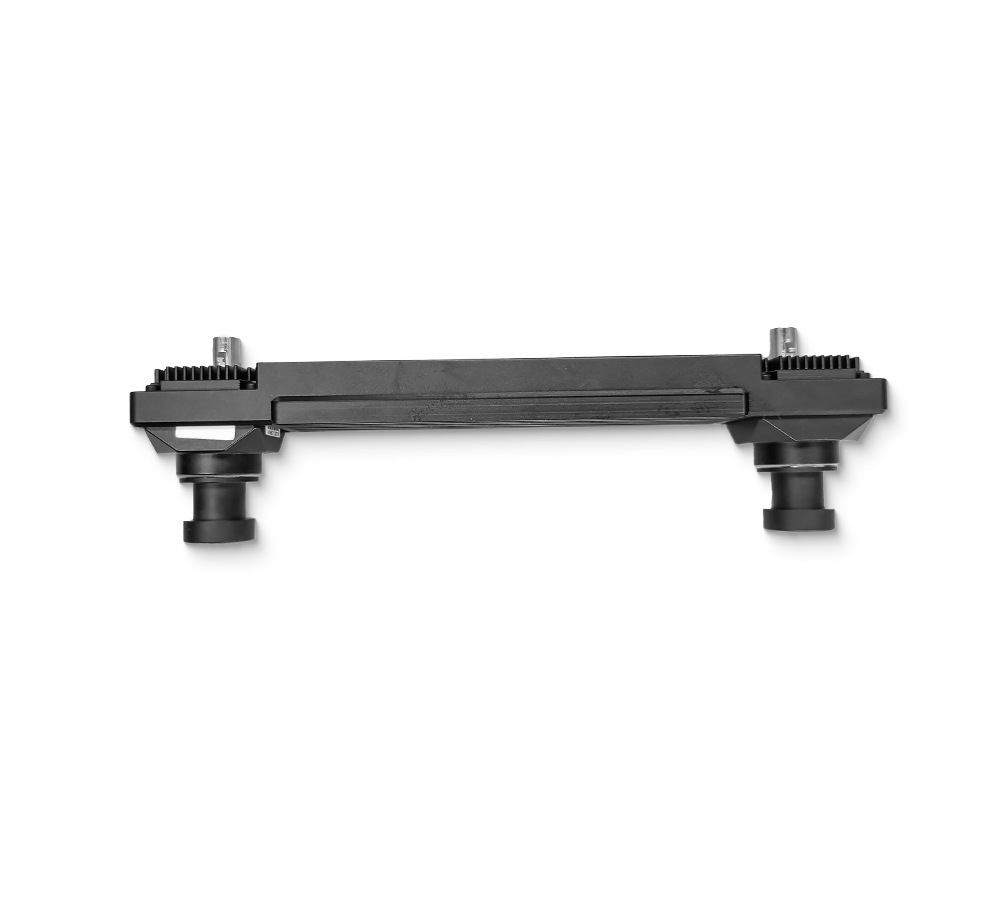

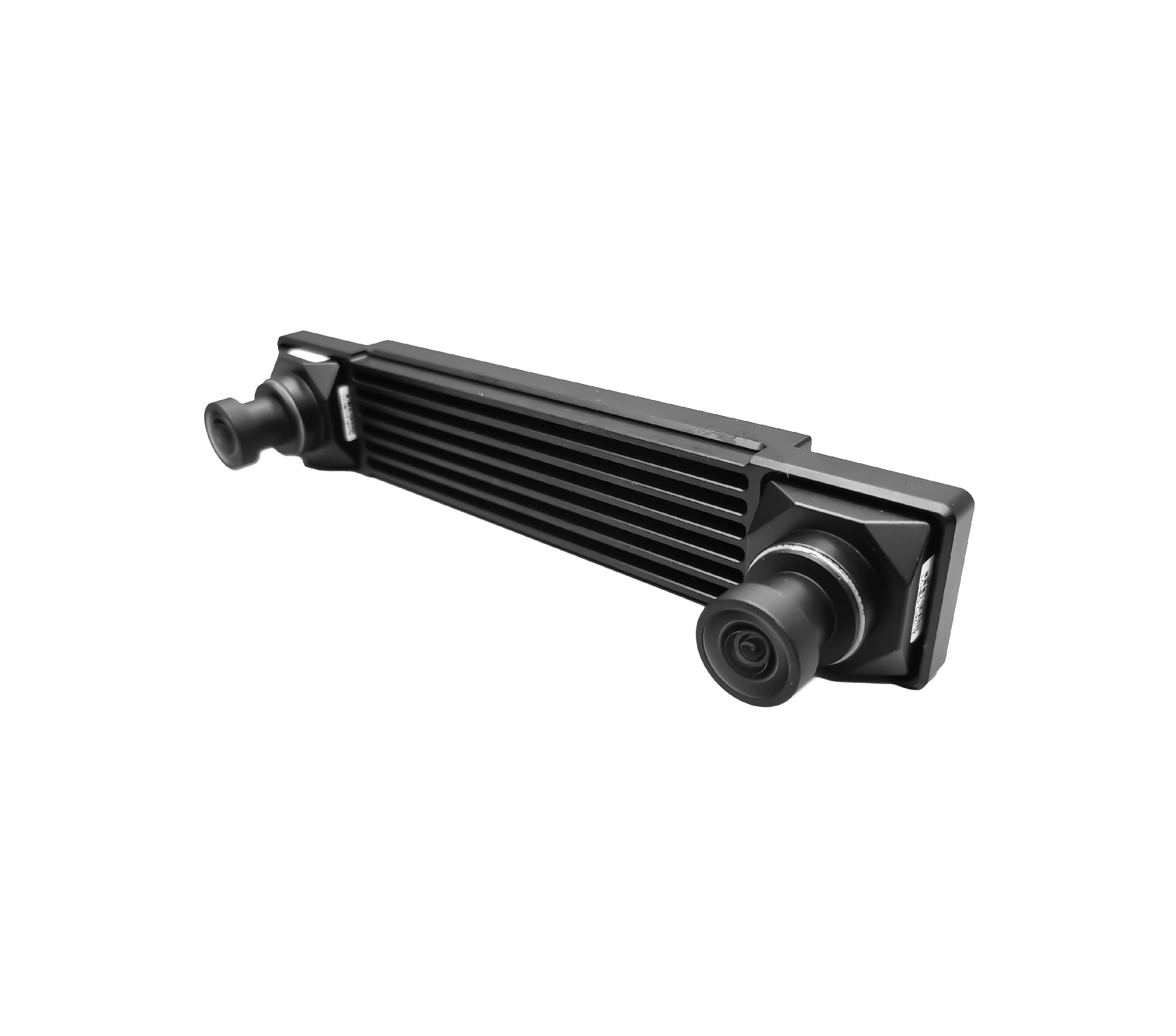

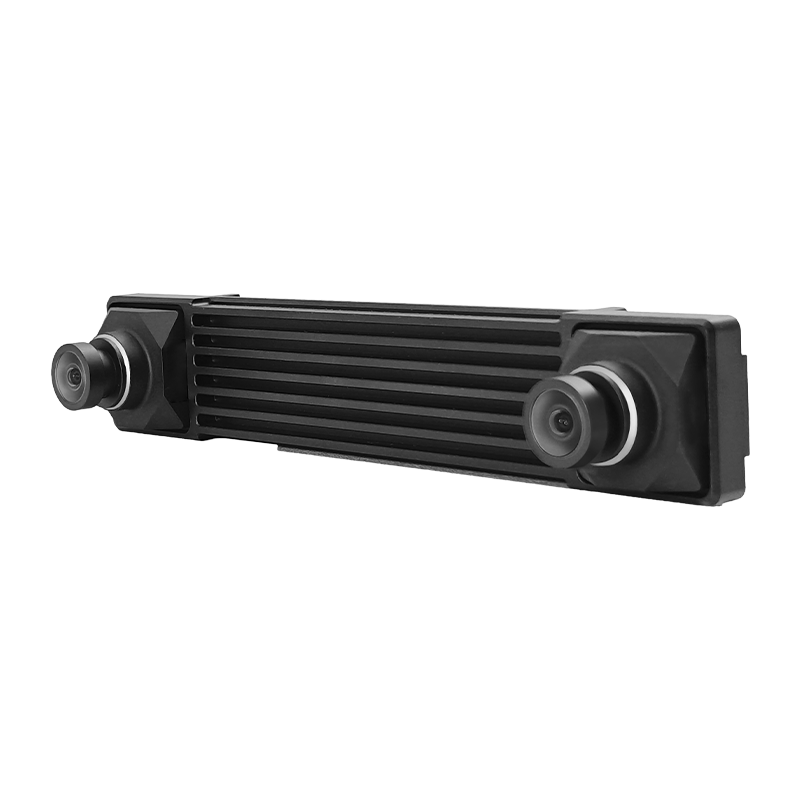

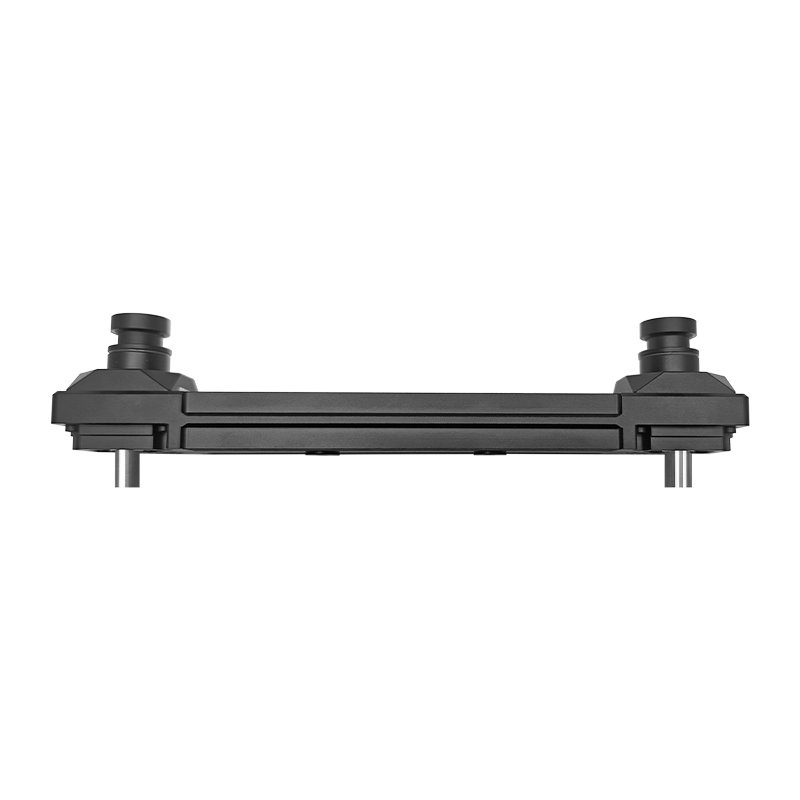

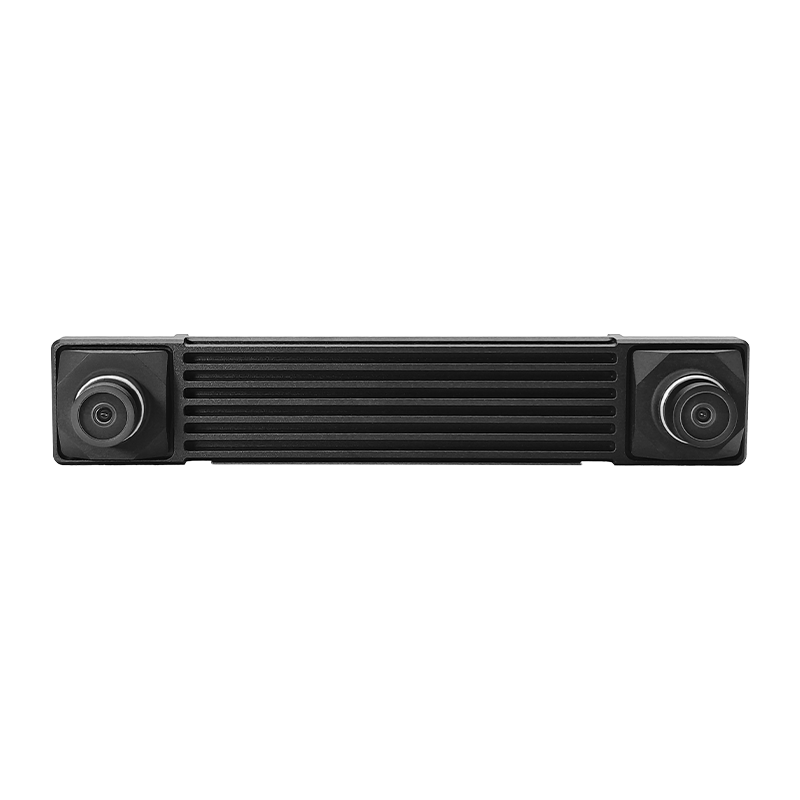

Automotive Stereo Camera
Resolution:1920x1280/1920x1536/3840x2160
Frame Rate: 30fps
Lens: HFOV 100°/120°
Baseline：120/160/200 mm
Image Format：UYVY (YUV422)
Optical size：1/2.6 1/2.4 1/1.7 inch CMOS
Pixel size：2.1/3.0μm

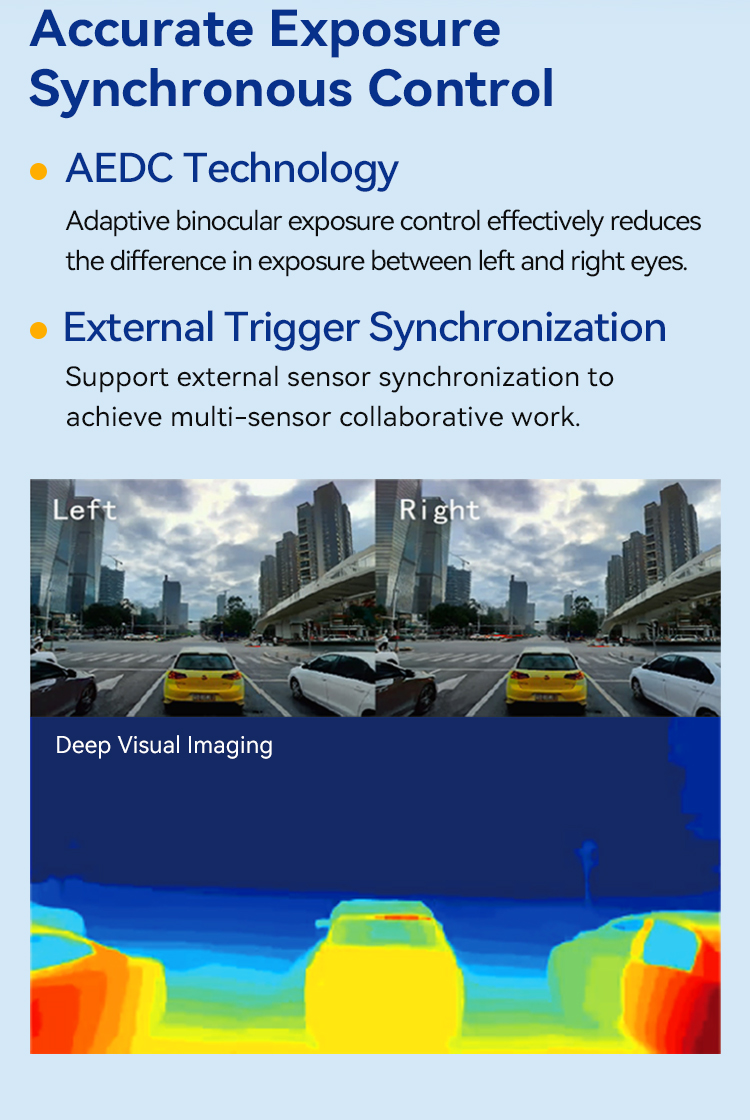

Exposure Control: Built-in ISP Control
Interface Type: GMSL 2 / FAKRA Z
Dynamic Range: 120dB
Shutter Mode: Rolling Shutter
Operating Temperature: -40°C ~ +85°C

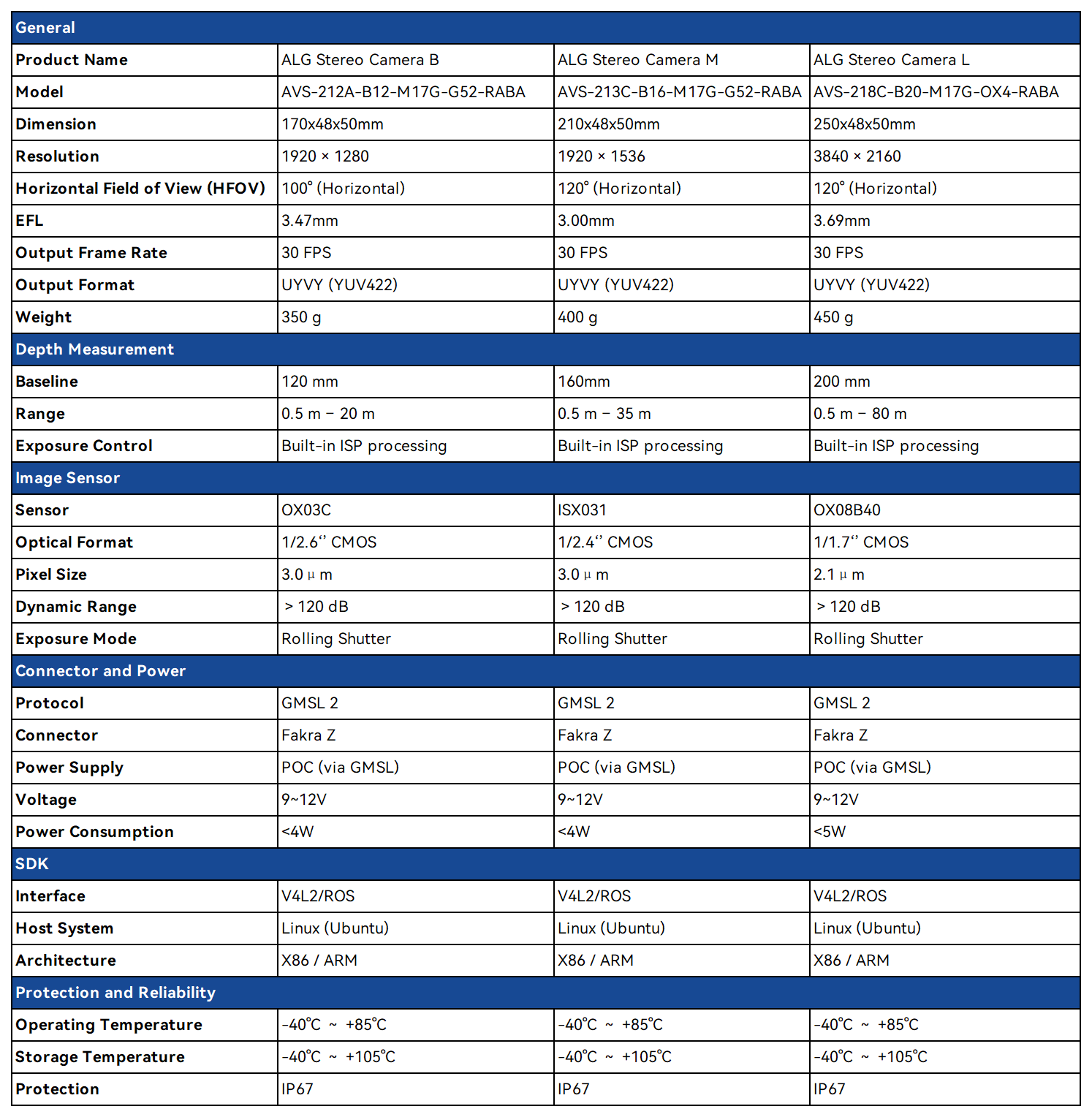

| Title | Release Date | Published By | Download |
|---|---|---|---|
|

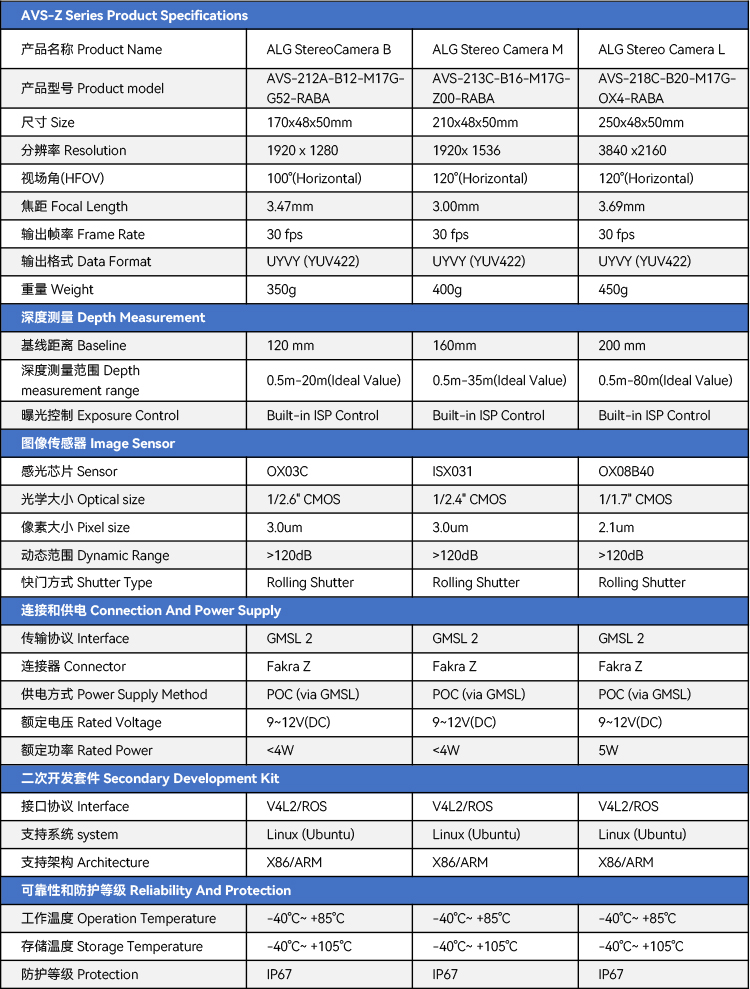

Product Specifications|AVS_Vehicle_Stereo_Camera_Product_Sheet
2026-07-08
艾利光科技
|
2026-07-08 | 艾利光科技 |
|
