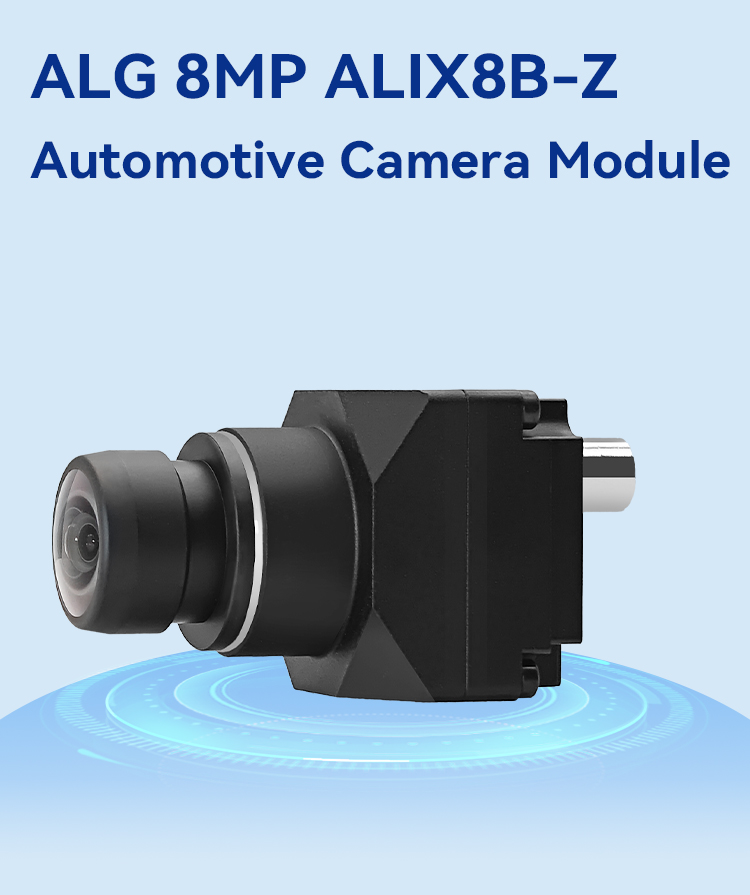

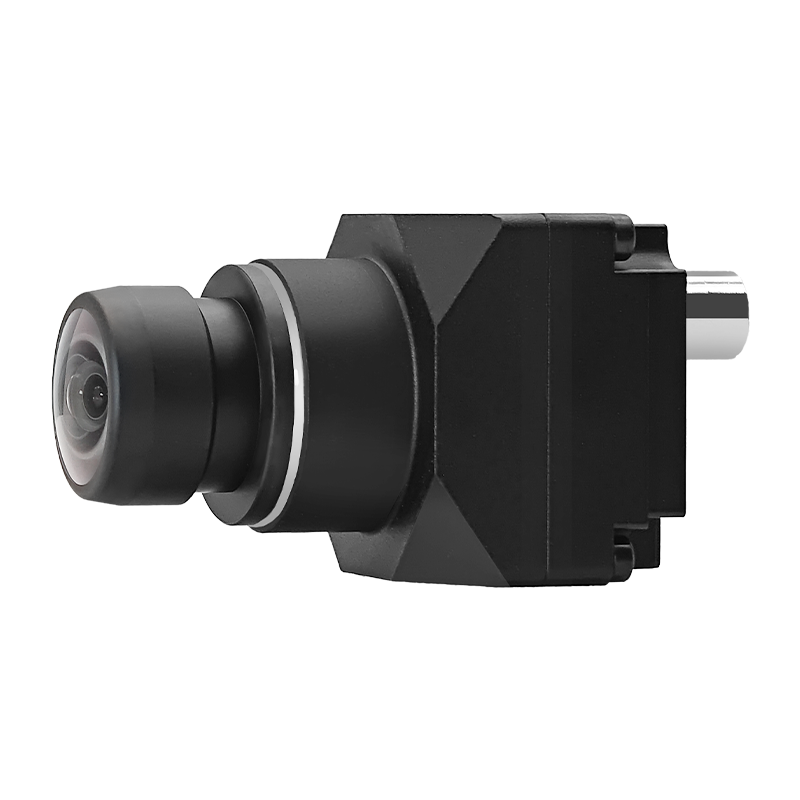

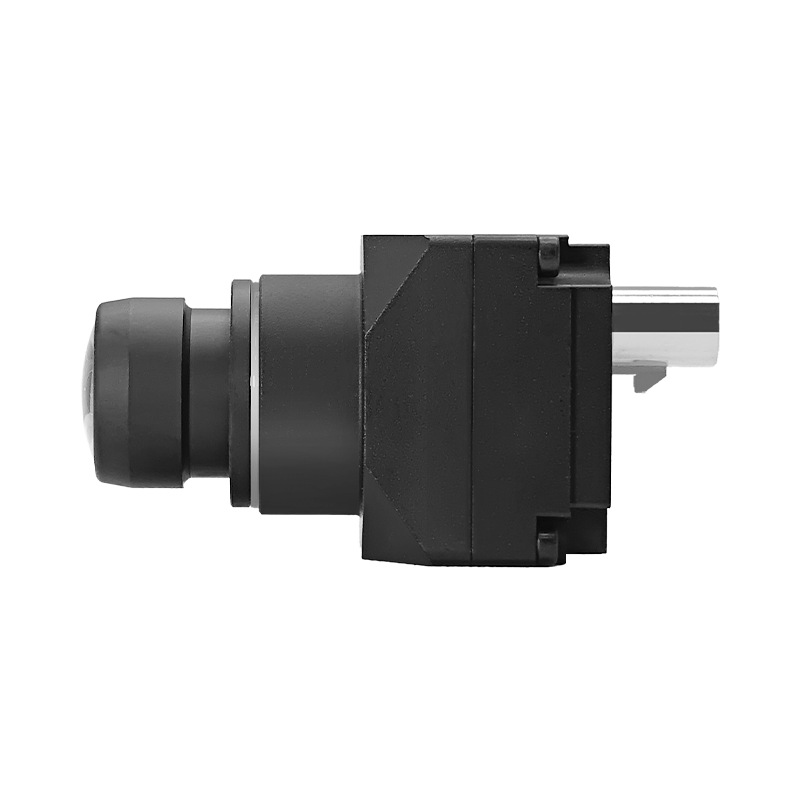

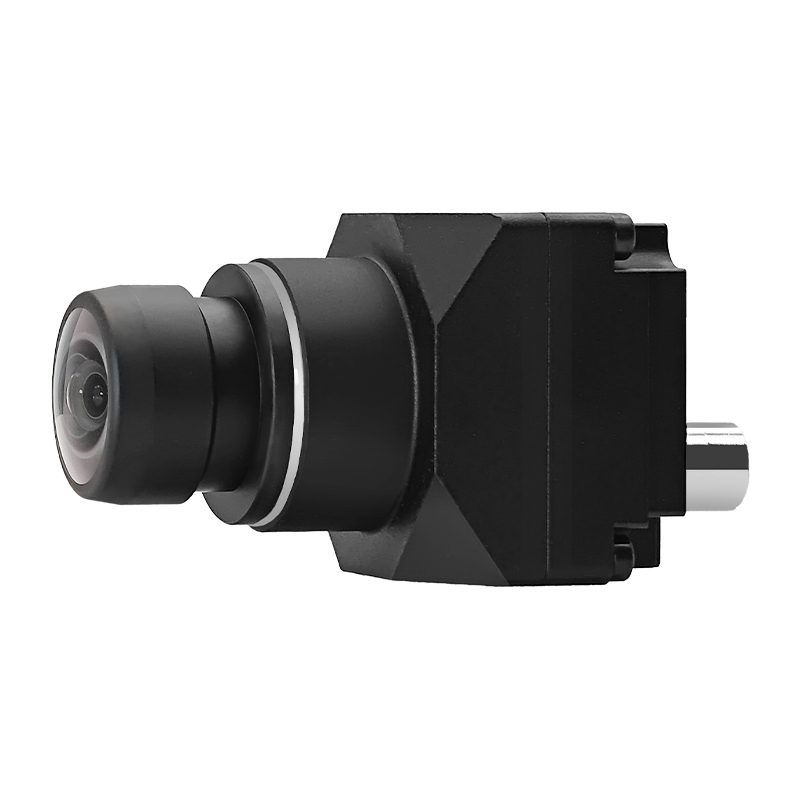

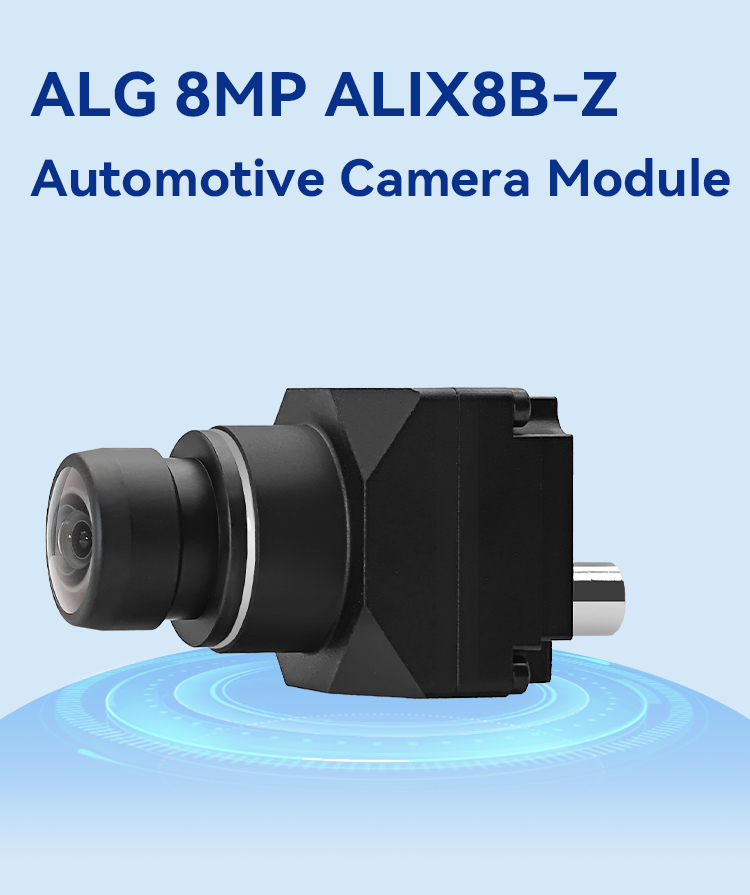

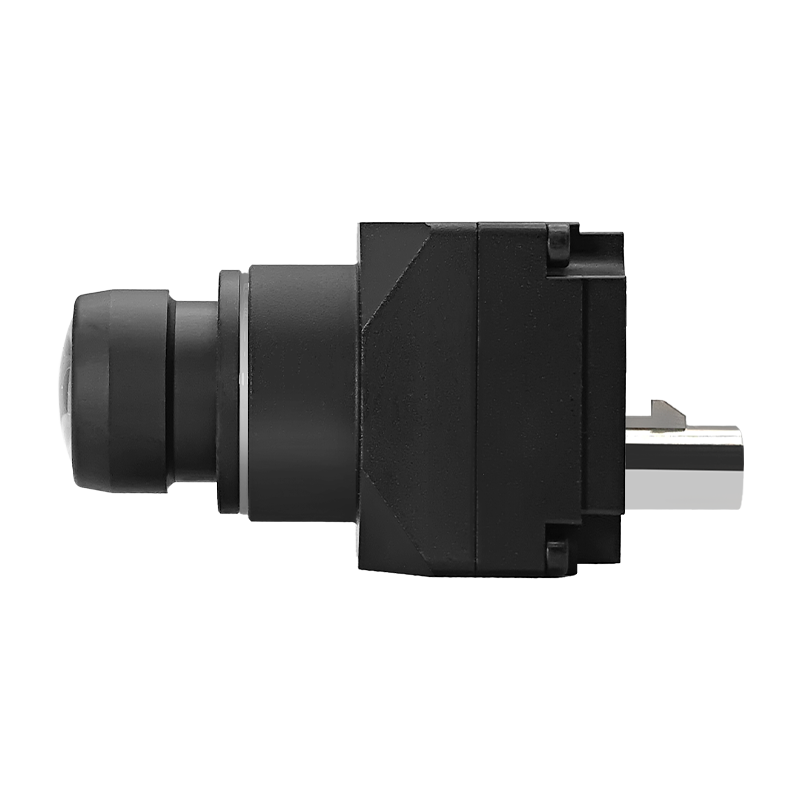

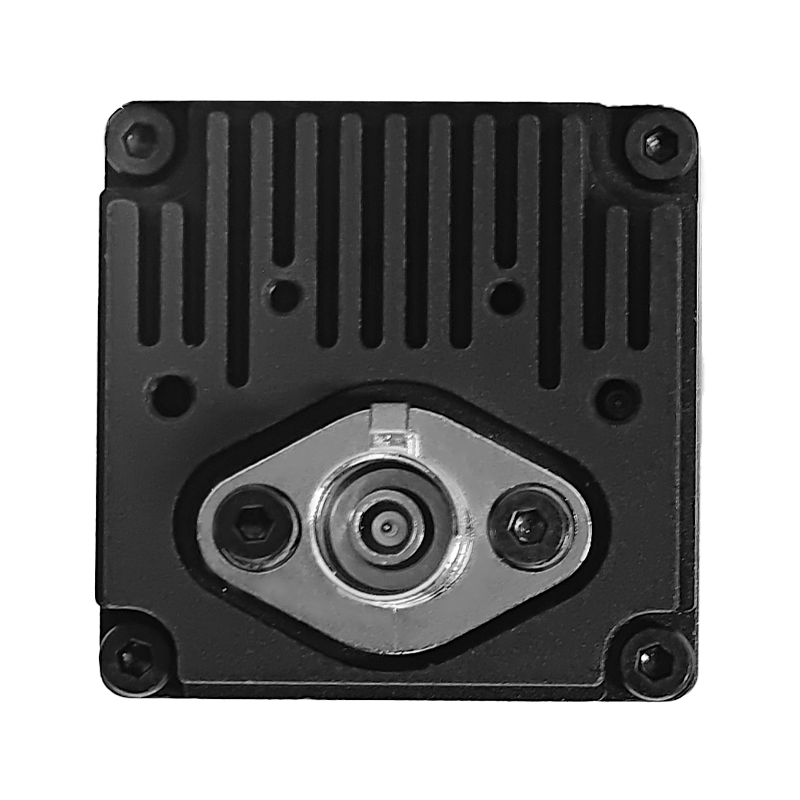

Automotive Camera
Resolution:3840(H)x2160(V)
Frame Rate: 30fps

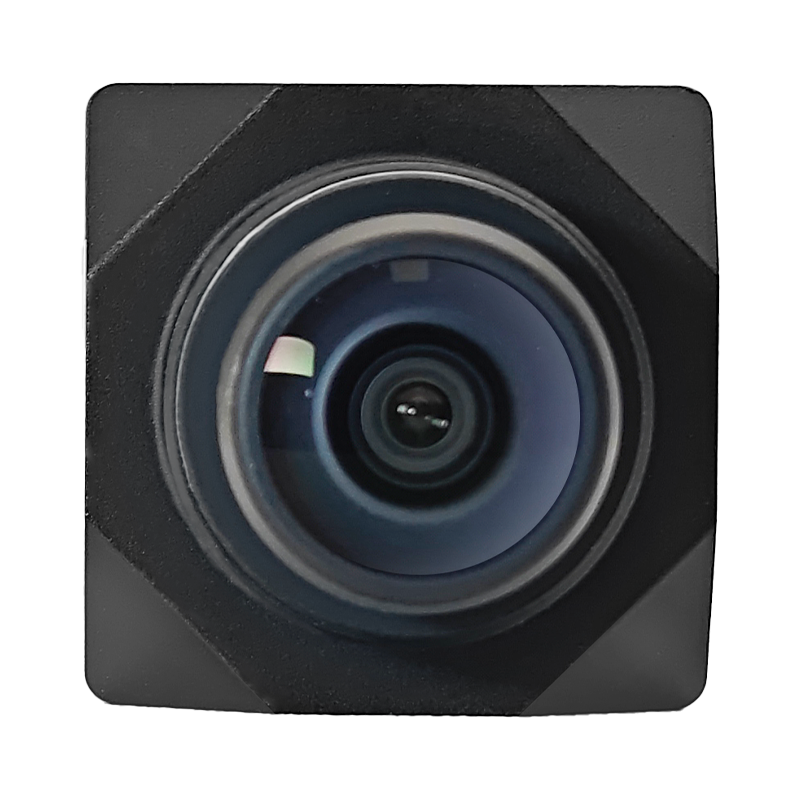

Lens: HFOV 30°±2°/123.2°±3°
Image Format：YUV422-8bit
Optical size：1/1.7 inch CMOS
Pixel size：2.1μm
Serializer: MAX96717G

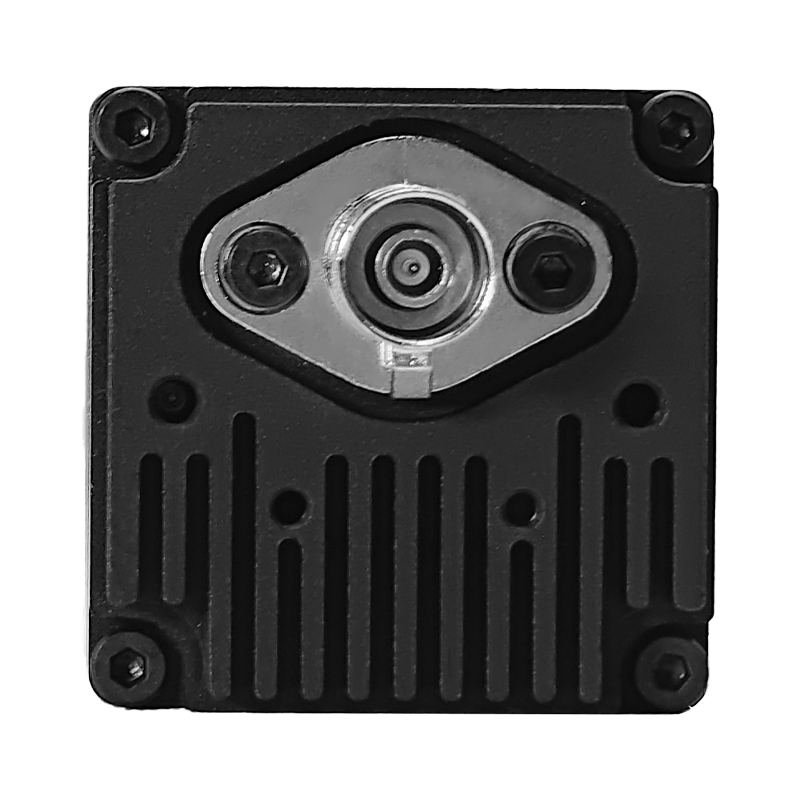

Output Interface: GMSL 2
Dynamic Range: 120dB
Shutter Mode: Rolling Shutter
Operating Temperature: -40°C ~ +85°C
| Title | Release Date | Published By | Download |
|---|---|---|---|
|
Product Specifications|ALI_Vehicle_Camera_Product_Sheet
2026-07-08
艾利光科技
|
2026-07-08 | 艾利光科技 |
|
